Keyboard Hardware
Specifications
Product name: PopuPiano MIDI Controller
Model: PopuPiano Full set
Product Composition: ①29-Key Main Electronic Keyboard + ② ChordPad + ③ 24-Key Expansion Keyboard
Size: ①342.6*122.6*33mm ②122.4*122.6*33mm ③281.8*122.6*33mm
Weight: ①1105g ②282g ③493.5g
Battery Capacity: 29-Key Main Electronic Keyboard ：2200mAh （there is no batteries in other parts）
Charging Time: 1.5 Hours
Wireless Connection: Bluetooth 5.0BLE
Charging Port: USB / Type-C
Power Input: 5V 2A
FCC ID: 2AKVI-29K
Supported Devices and Systems: *Bluetooth 4.0BLE or later. For some device models which do not support Bluetooth MIDI, wired connection is necessary. Apple device: iOS 16, iPhone X, iPad 8 or later ; Android device: Android 11 or later.
Other: The product is also a standard MIDI keyboard. It supports professional music composition software such as Logic Pro, Cubase, GarageBand etc.
Charging the PopuPiano
[Charge]: Plug the Type-C cable into the charging port at the back of the [29-Key Main Electronic Keyboard]. The green flashing lights show the battery status. Charging time is about 1.5 hours.
（1）Please make sure the voltage and current of the adapter are 5V=1A/2A and safety compliance. PopuPiano cannot be properly charged if the voltage is lower than 5V.
（2）Please check whether PopuPiano is charged by fast charging adapter. Some fast charging adapters cannot work with PopuPiano properly, so please switch to a normal one and have another try.
（3）Please check the connection of the charger, USB cable, and PopuPiano to ensure the connections are correct.
（4）Please check whether the charger has power output, you can test it with a mobile phone first.
（5）When the charging indicator shows abnormalities, perform a reset by long pressing the power button for 15 seconds.
Navigating the device
Device overview

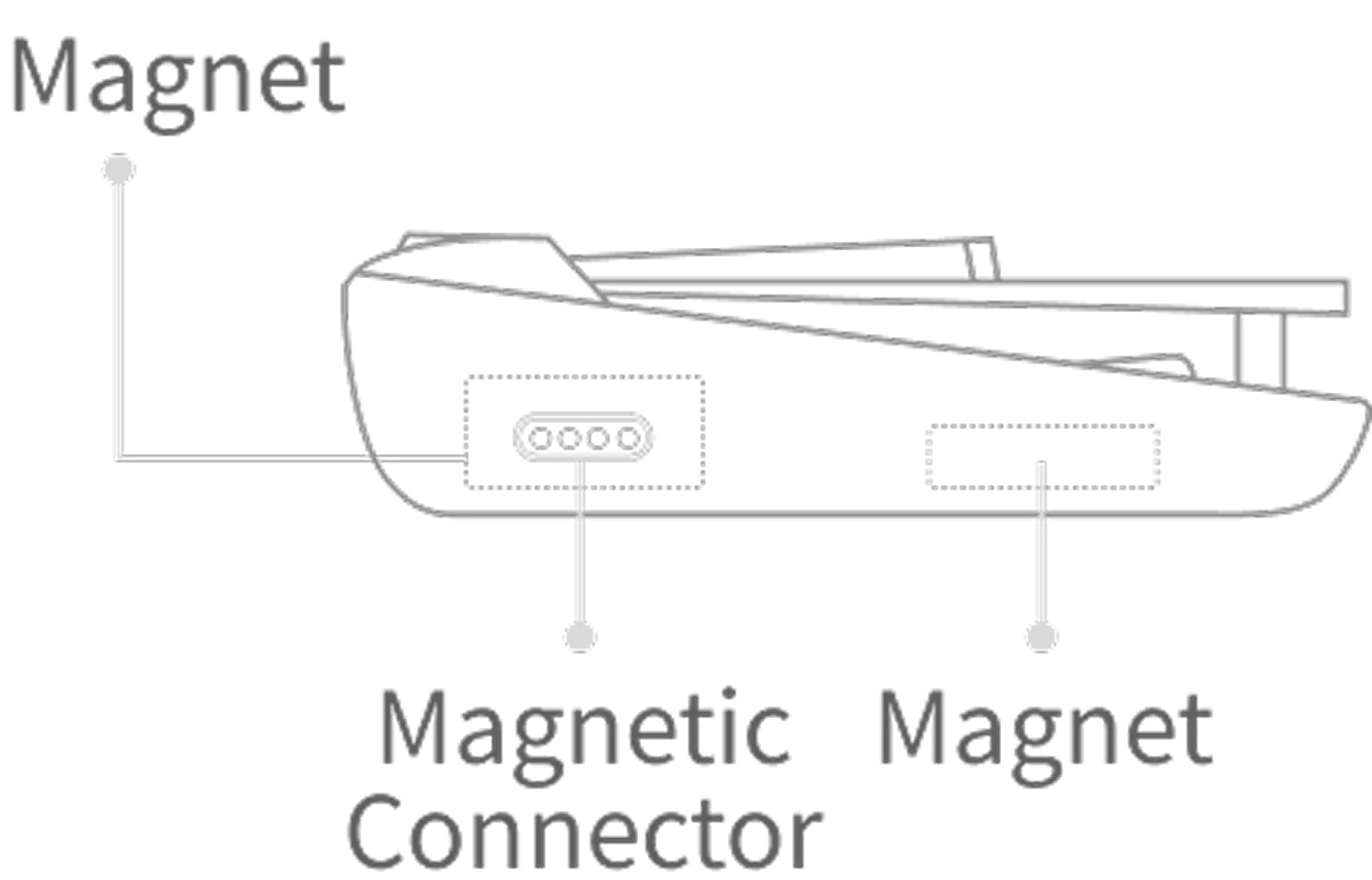

Side view
Hardware Connection / Modular Expandability
When [PopuPiano Chord Pad] or[PopuPiano ExtraPiano]is successfully connected to the [PopuPiano 29Keys], the connection animation will appear on both modules.

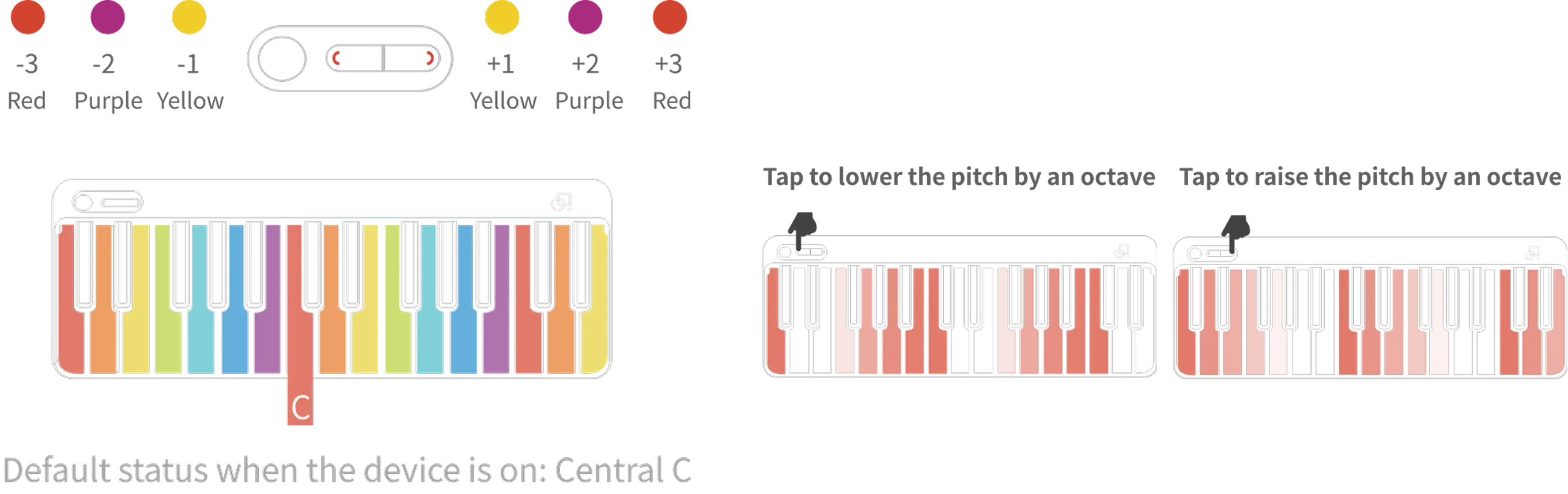

Octave Shift
Consider a single octave as one unit, left and right buttons are used for switching between octaves. Press left shift button for lower pitches, press right shift button for higher pitches.

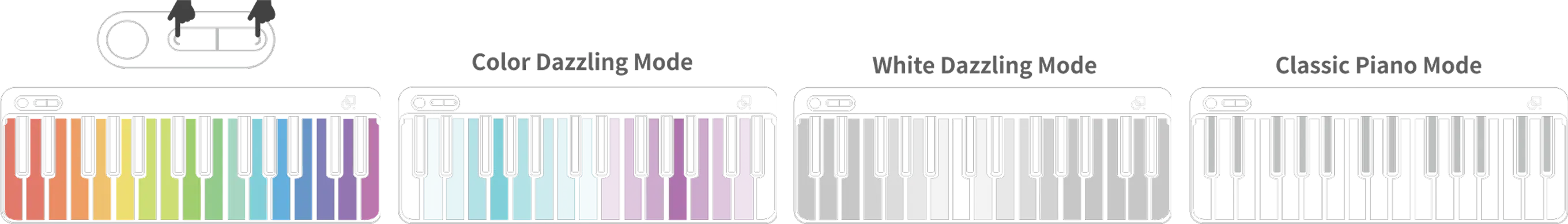

Dazzling Modes
PopuPiano has several dazzling modes to choose from, providing diverse visual effect for performance or videotaping. Press left and right octave shift buttons at the same time to activate dazzling mode.
